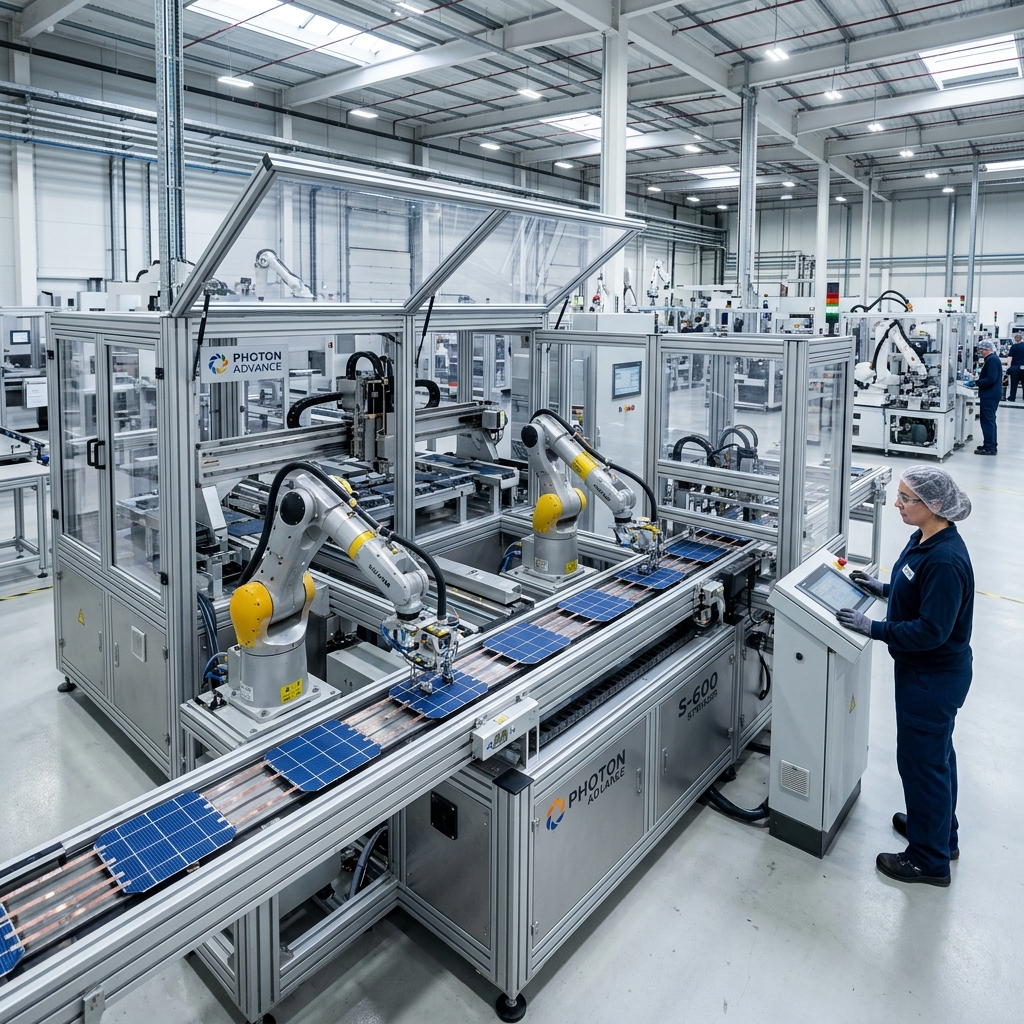

Automatic Solar Cell Stringer Machine
High-speed automatic stringer for soldering solar cells into strings in PV module production lines.
Core Features
- Automatic cell feeding and alignment
- Infrared soldering technology
- Built-in string inspection system
- High-speed production up to 4000 cells/hour
Core Features
Automatic cell feeding and alignment
Infrared soldering technology
Built-in string inspection system
High-speed production up to 4000 cells/hour
Compatible with half-cut and multi-busbar cells
Stable welding quality with real-time monitoring
Applications
PV module production line
Solar panel manufacturing factory
Automatic solar cell assembly process
Key Specifications
| Applicable Cell Size | 156×156mm ~ 230×230mm |
| Production Capacity | ≥4000 cells/hour |
| Welding Method | Infrared soldering |
| Number of Busbars | 5BB ~ 16BB |
| Power Supply | 380V 50Hz 3-phase |
| Dimensions (L×W×H) | 12000×2500×1800mm |
Service & Support
Installation guidance
Remote technical support
Operator training
Spare parts supply
OEM/ODM customization
