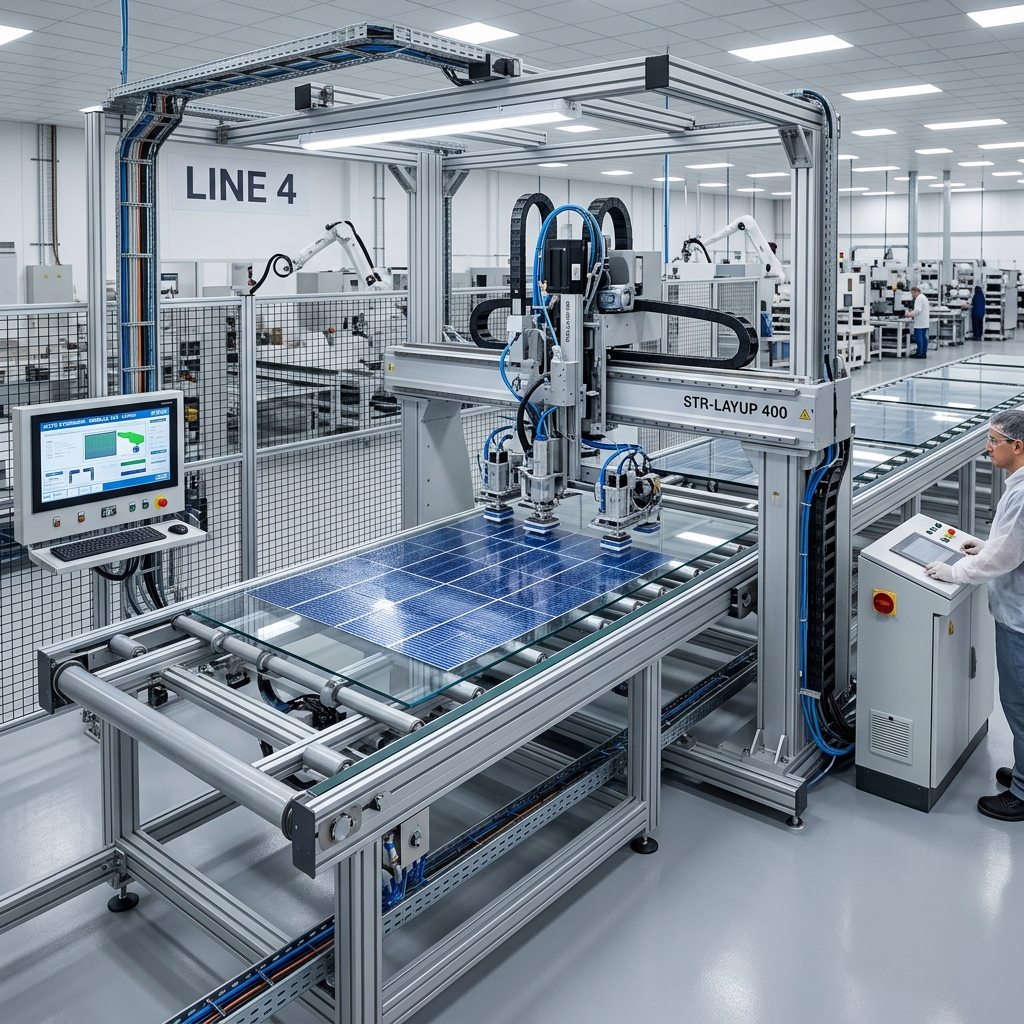

PV Module Layup Machine
Automatic layup machine for arranging cell strings, EVA, glass and backsheet for PV module production.
Core Features
- Automatic glass and EVA feeding
- Precise cell string placement
- Vision inspection system
- Compatible with half-cut and shingled cells
Core Features
Automatic glass and EVA feeding
Precise cell string placement
Vision inspection system
Compatible with half-cut and shingled cells
High-speed layup process
Integrated with upstream stringer
Applications
PV module production line
Module layup process
Solar panel assembly line
Key Specifications
| Applicable Module Size | Up to 2400×1300mm |
| Layup Accuracy | ±0.5mm |
| Cycle Time | ≤25s per module |
| Power Supply | 380V 50Hz 3-phase |
Service & Support
Installation guidance
Remote technical support
Operator training
Spare parts supply
