Residential & Light Commercial

Floor-Standing LiFePO4 Battery

LPF-200AH / 300AH / 314AH / 360AH10–18 kWh

A mobile floor-standing battery platform available in four capacities from 10 to 18 kWh for higher-demand residential and light commercial systems.

Core Features

Four capacity options: 10, 15, 16 and 18 kWh

LiFePO4 chemistry with ≥6,000-cycle design life

Integrated display for local system visibility

Caster-mounted enclosure for easier placement

Up to 16 units connected in parallel

RS485 and CAN communication

High-consumption homes

Small shops and offices

Solar backup and peak-shaving systems

← Swipe to compare all models →

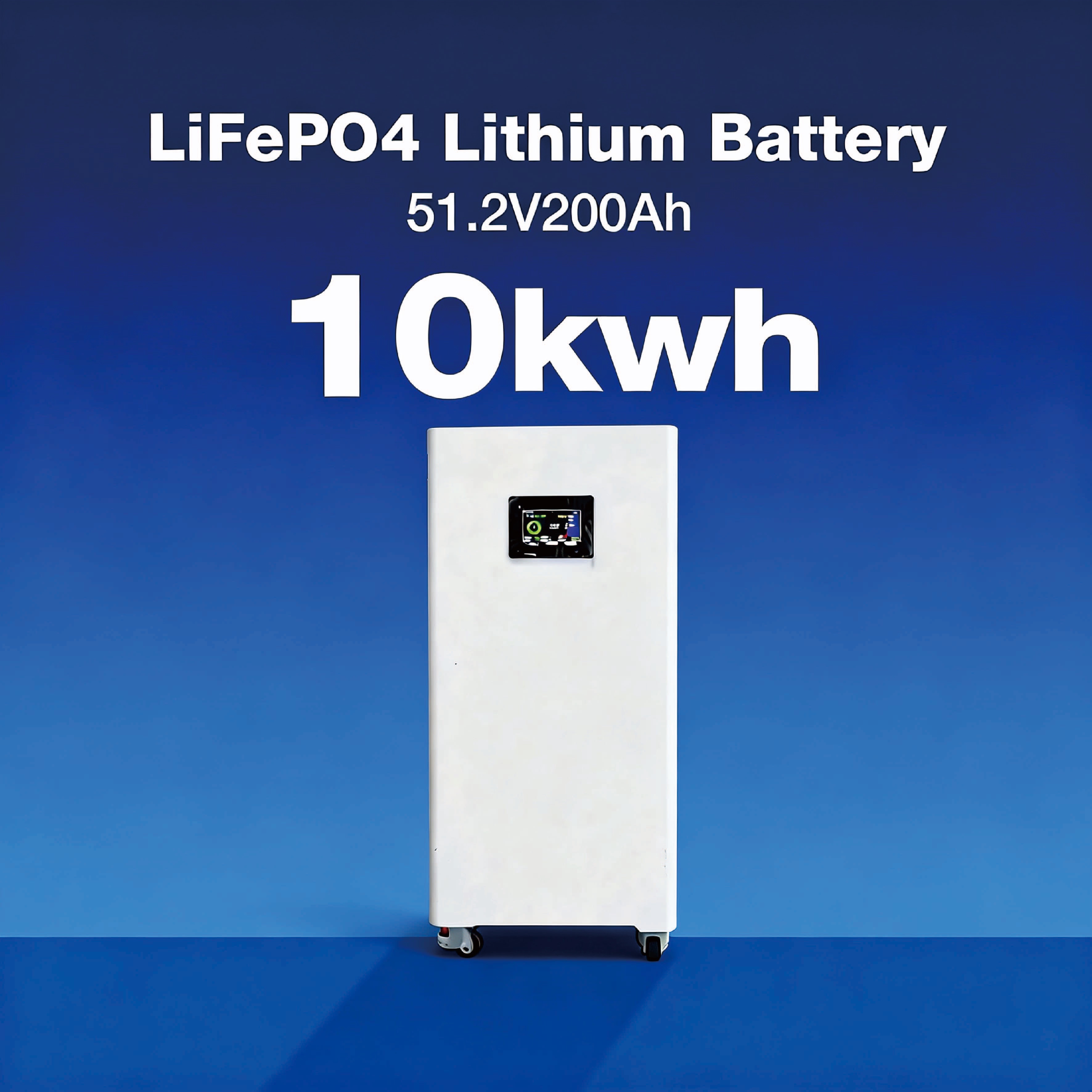

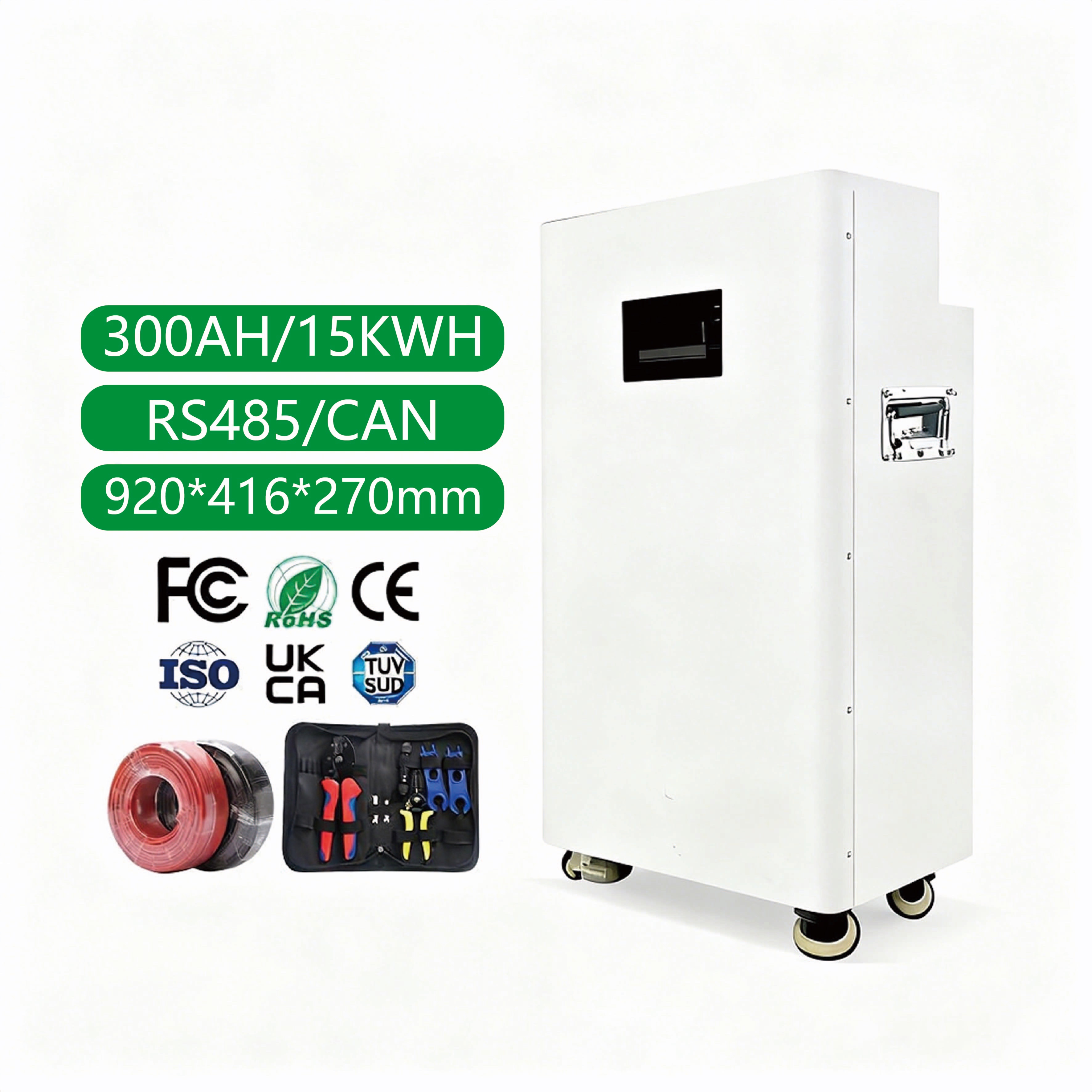

Model	LPF-200AH	LPF-300AH	LPF-314AH	LPF-360AH
Battery Cell Material	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	51.2V
Nominal Capacity	200Ah	300Ah	314Ah	360Ah
Nominal Energy	10kWh	15kWh	16kWh	18kWh
Upper Charge Voltage	57.6V
Discharge Cut-off Voltage	44.8V
Cycle Life	≥6,000 cycles @ 80% DOD, 0.5C
Battery Cell Layout	16S
Product Dimensions (W×D×H)	920 × 416 × 270mm	920 × 416 × 270mm	920 × 416 × 270mm	970 × 416 × 270mm
Packing Dimensions (W×D×H)	970 × 460 × 420mm
Net Weight	105kg	107kg	107kg	115kg
Gross Weight	118kg	120kg	120kg	128kg
Protection	IP20
Maximum Parallel	16PCS
Short-Circuit Protection	Supported; recovery after load disconnection
Communication Port	RS485 / CAN
